Energetic Costs of Partial State Excitation of Atomic Oxygen by Auroral Electrons

The costs for initial electron energies 100 eV, 1 keV and 10 keV were calculated for air at ~120 km (mixture of 70% N₂, 10% O₂ and 20% O).

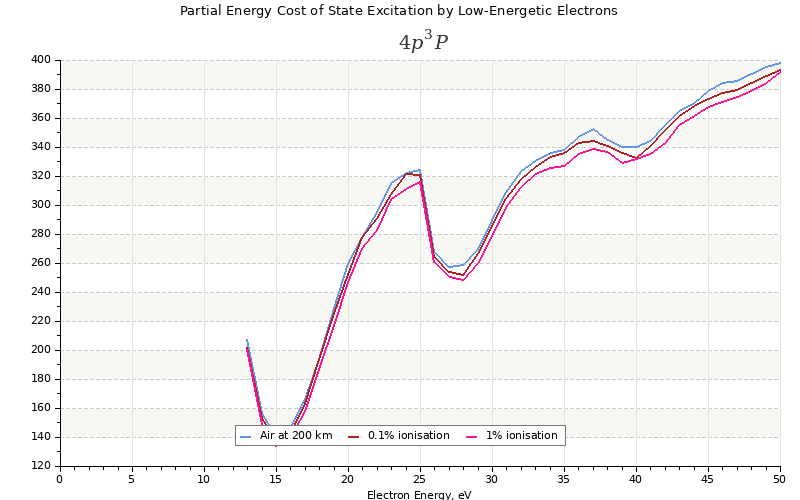

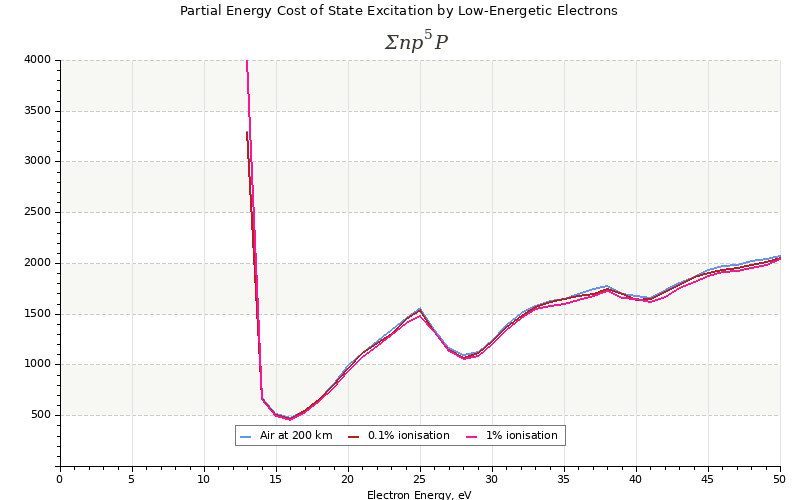

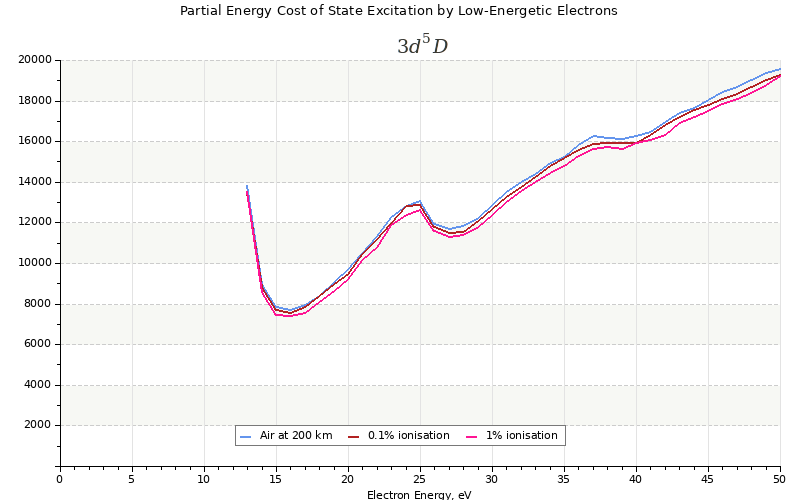

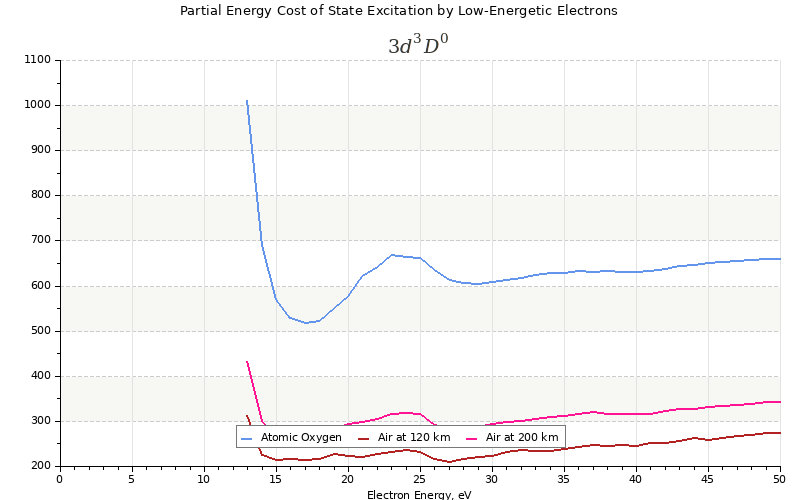

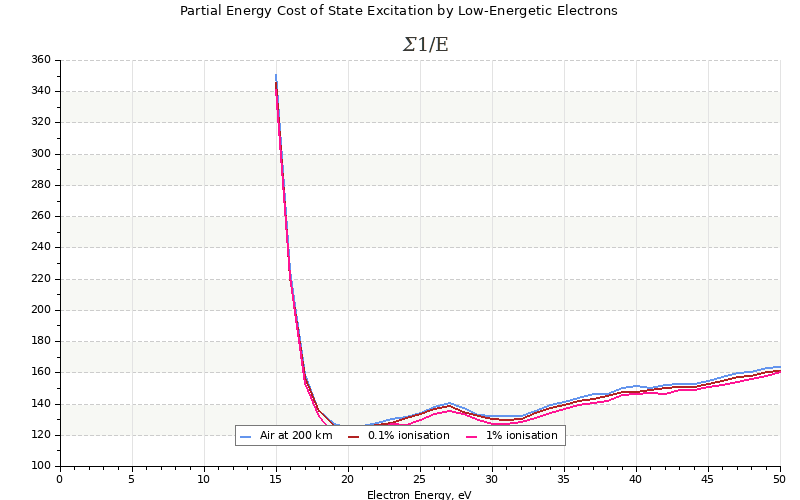

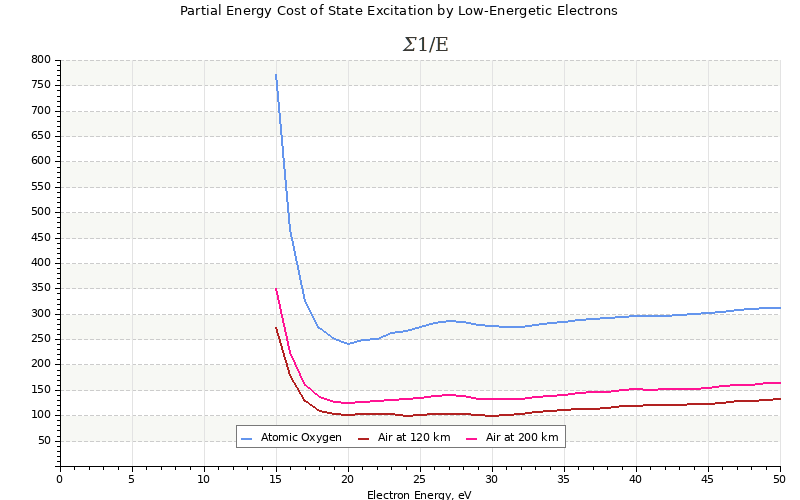

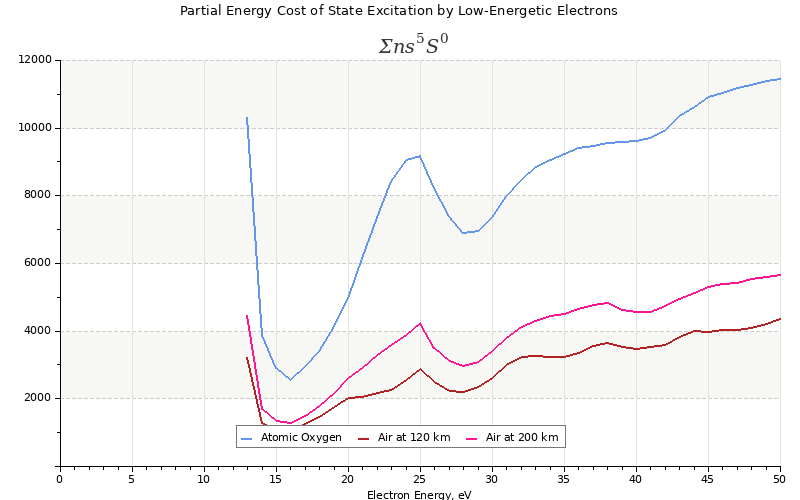

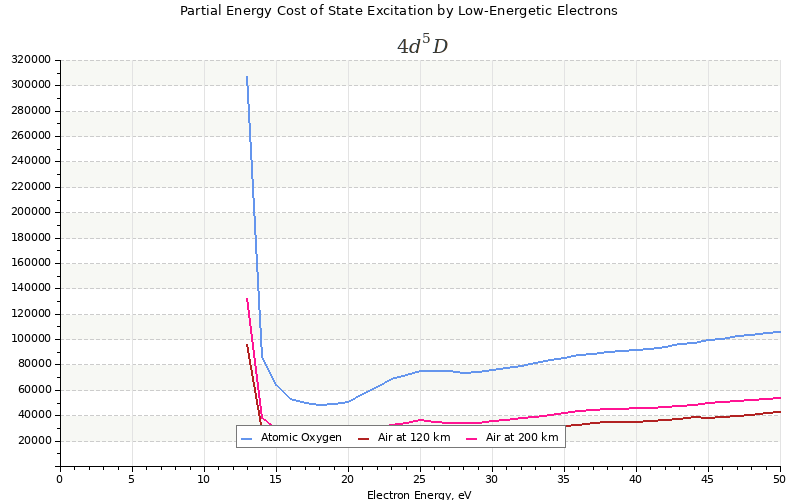

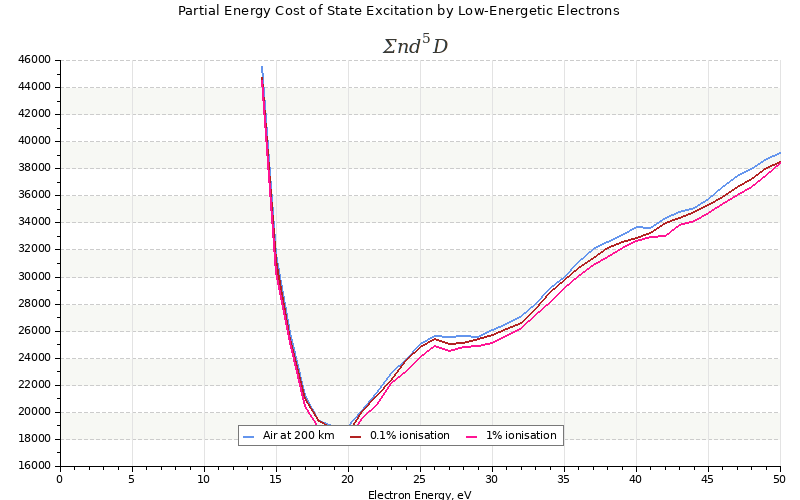

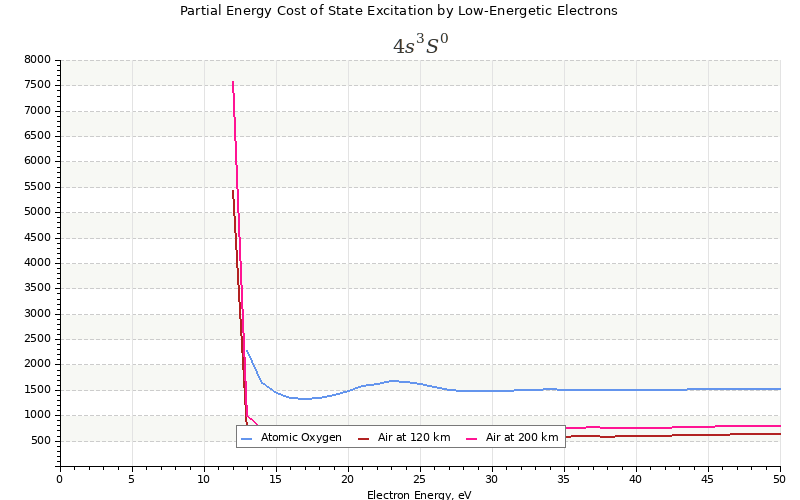

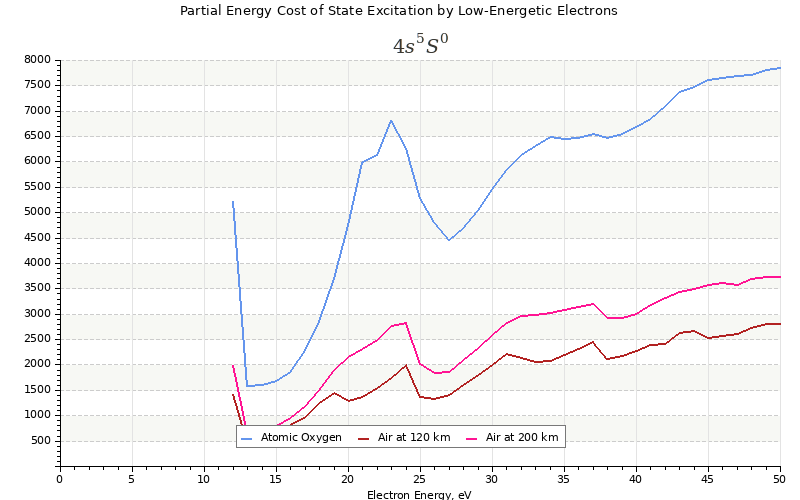

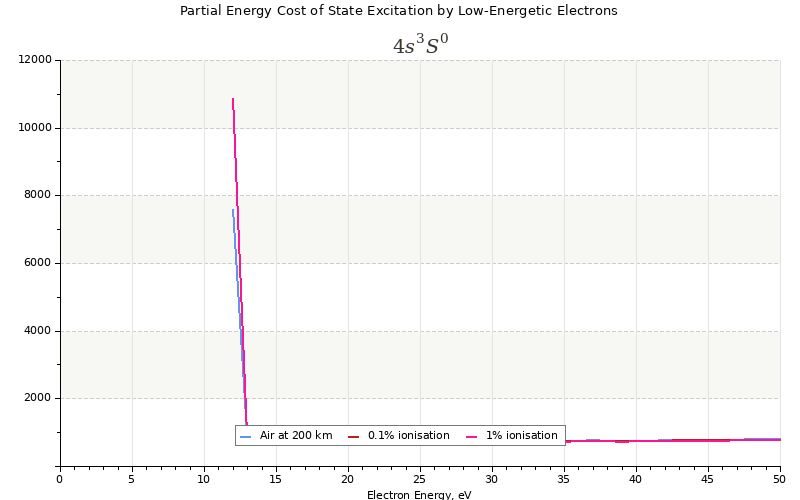

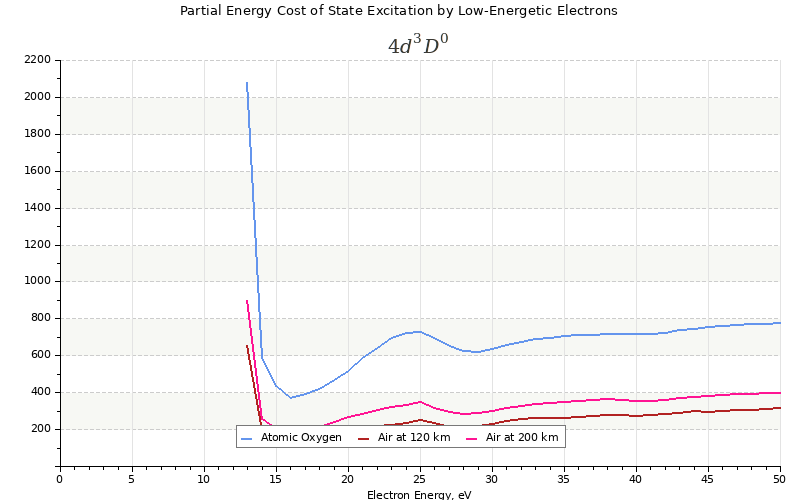

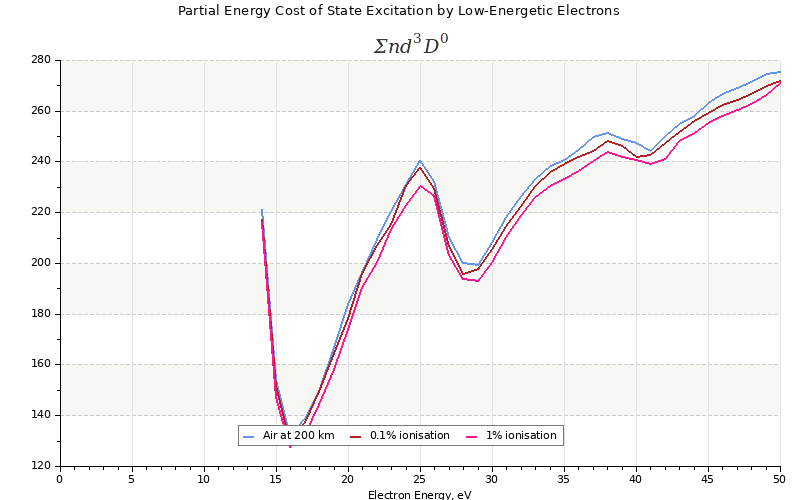

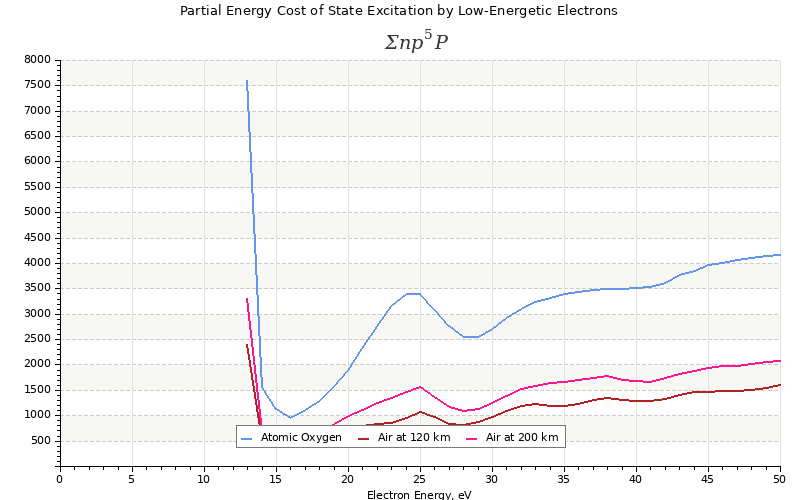

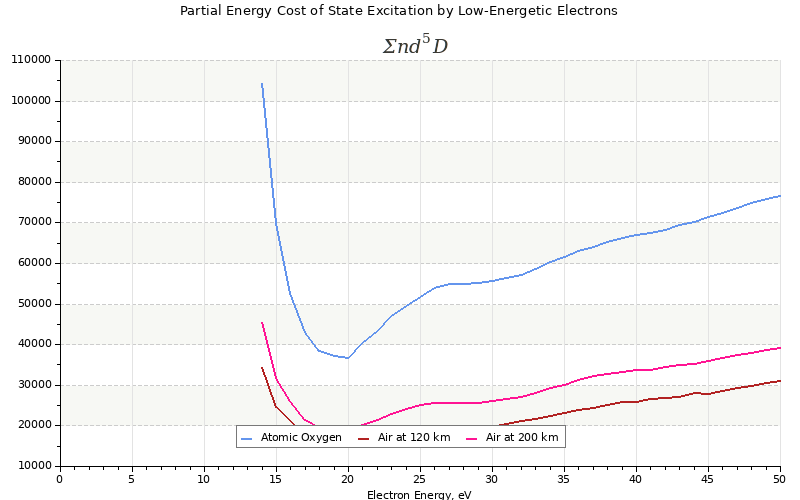

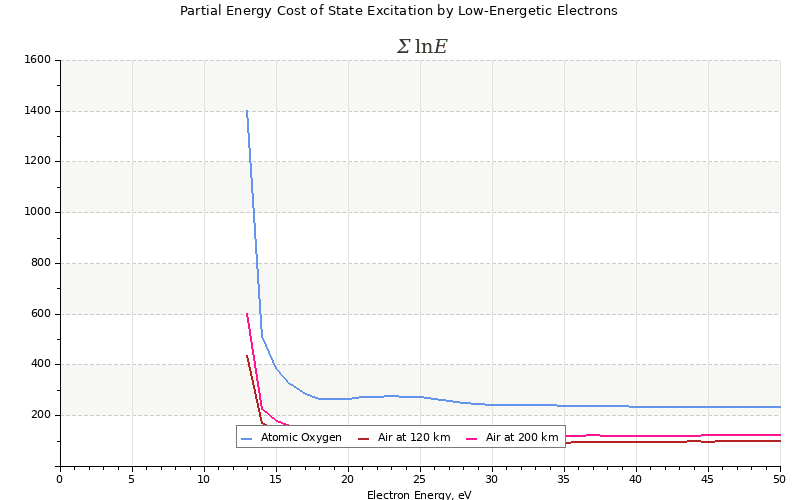

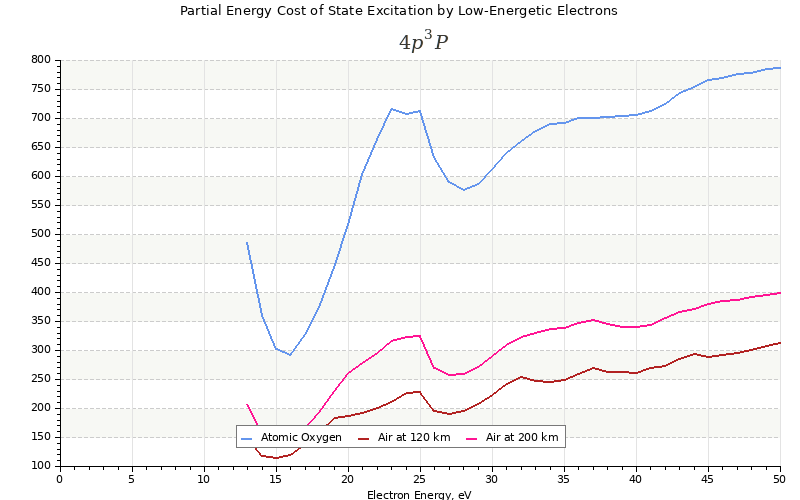

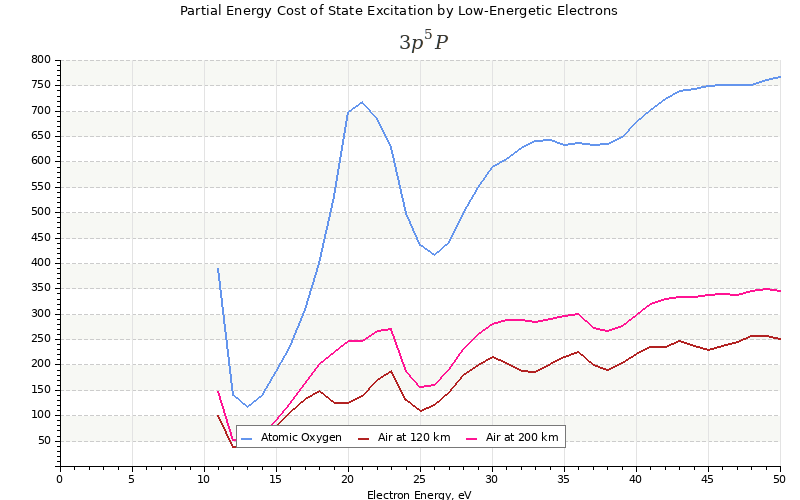

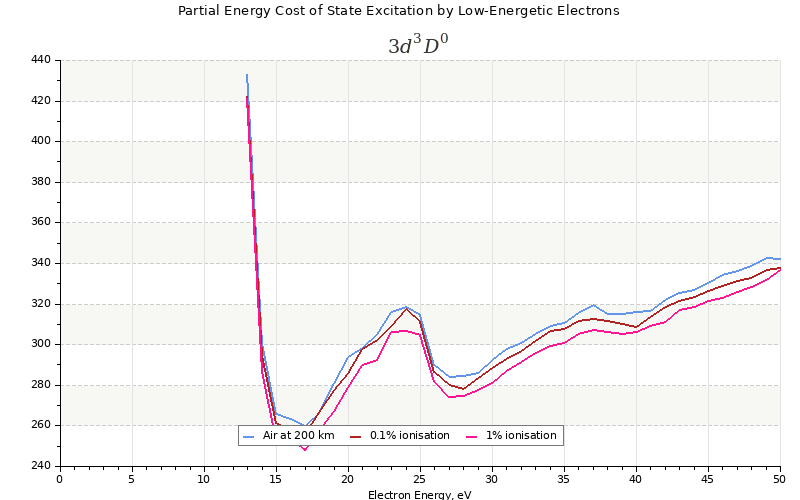

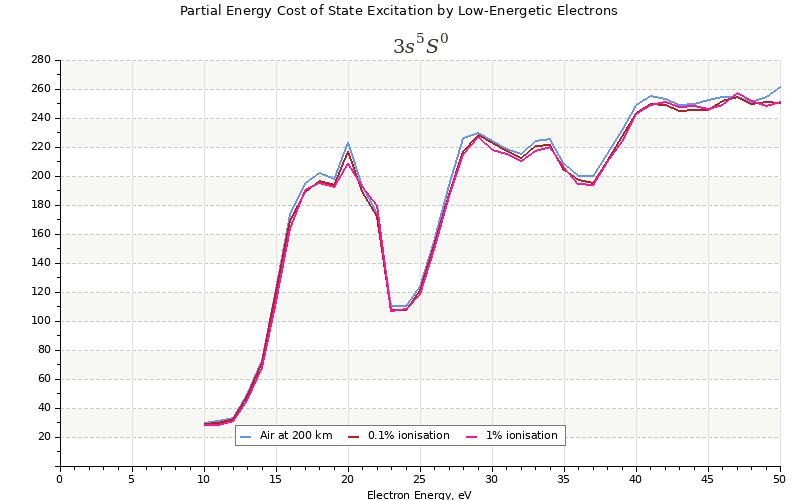

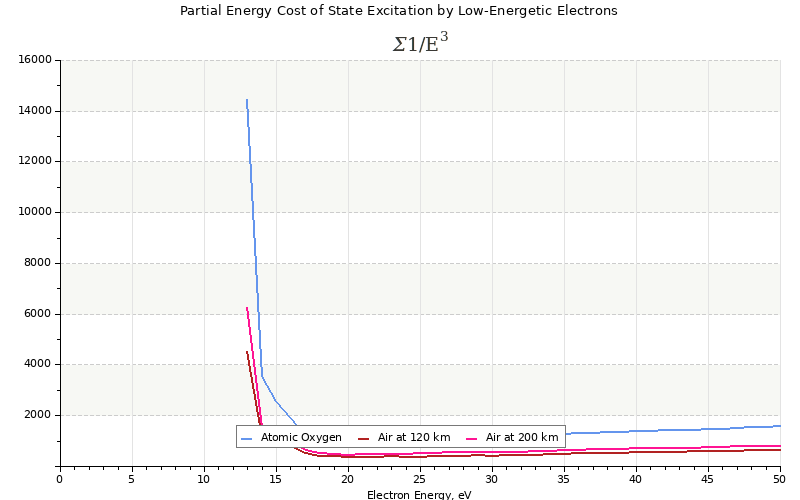

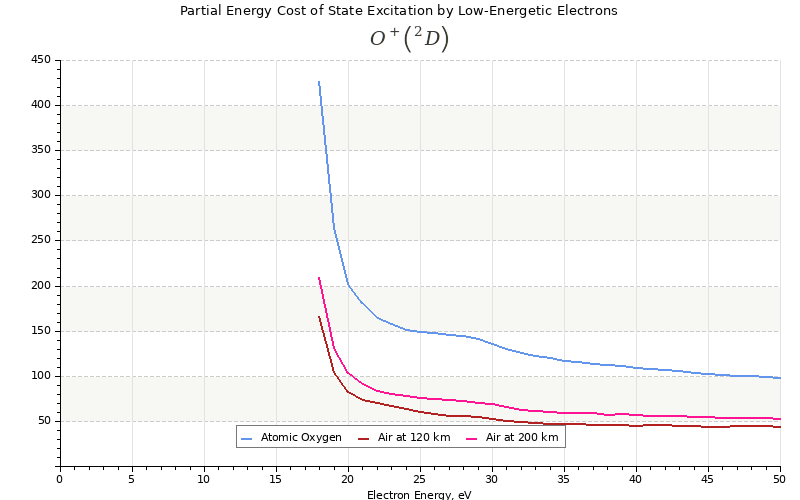

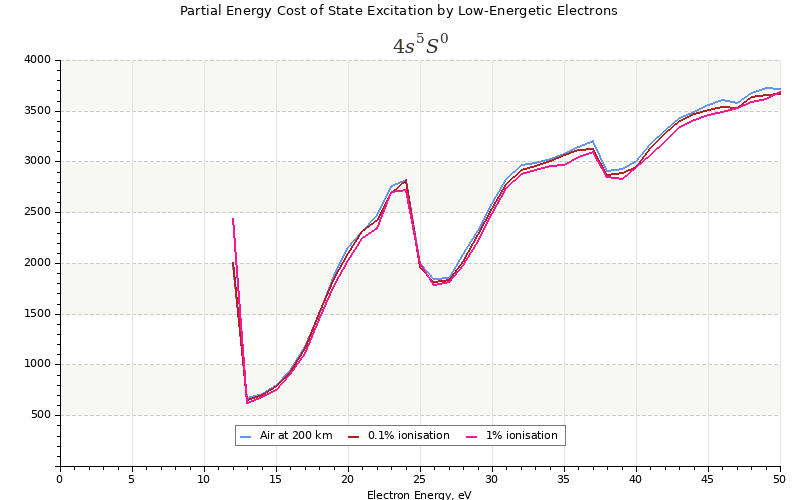

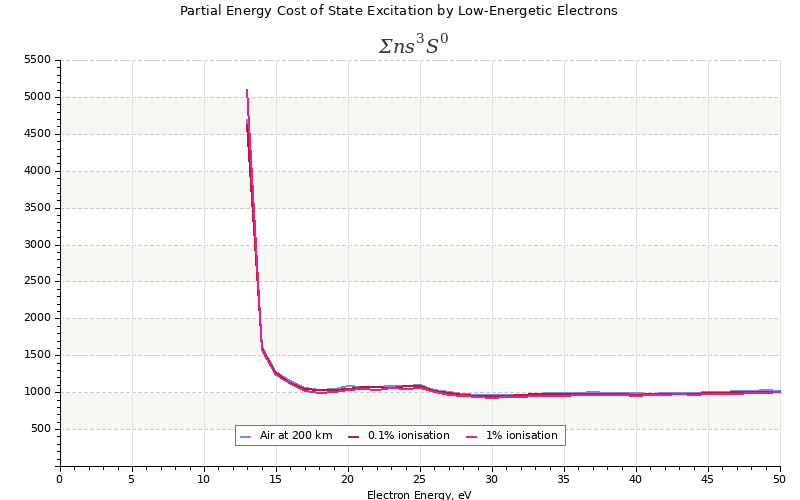

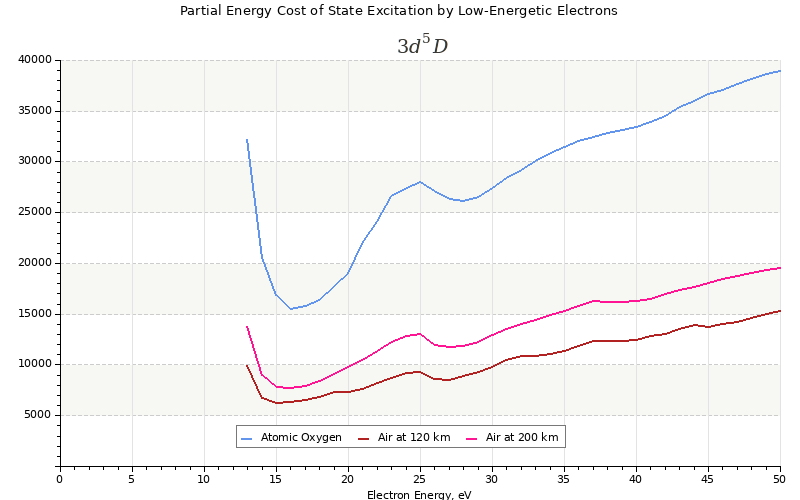

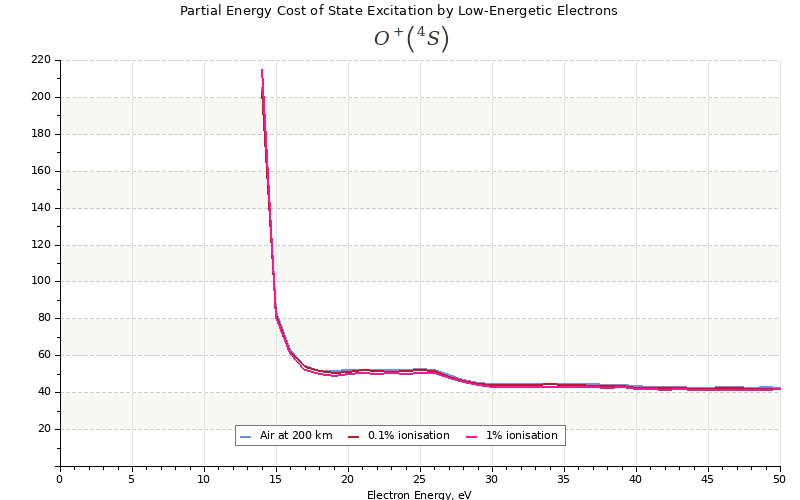

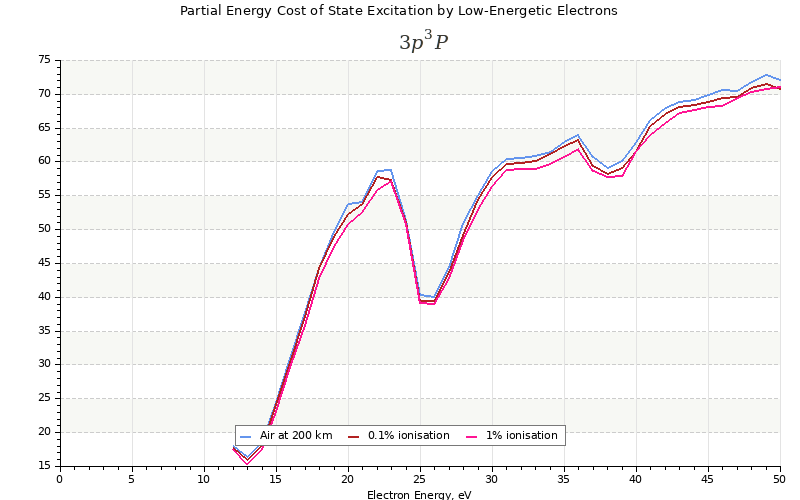

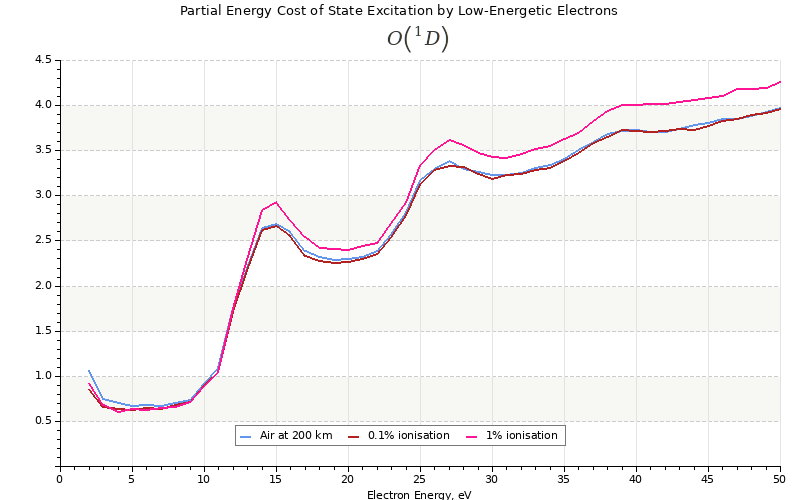

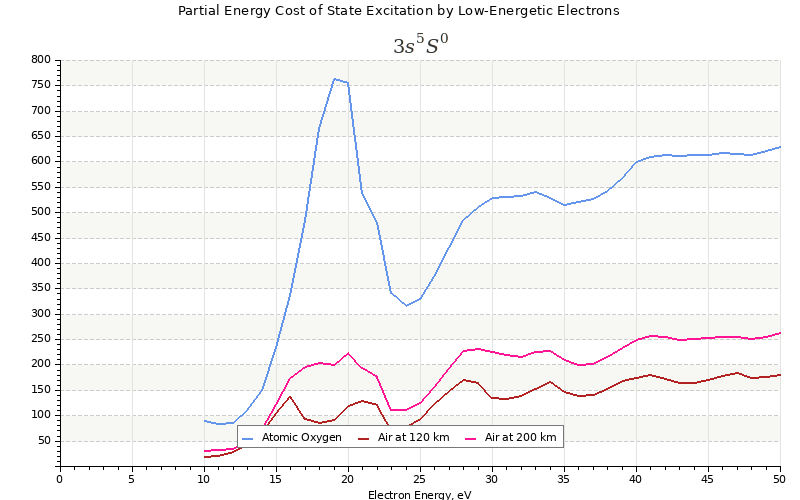

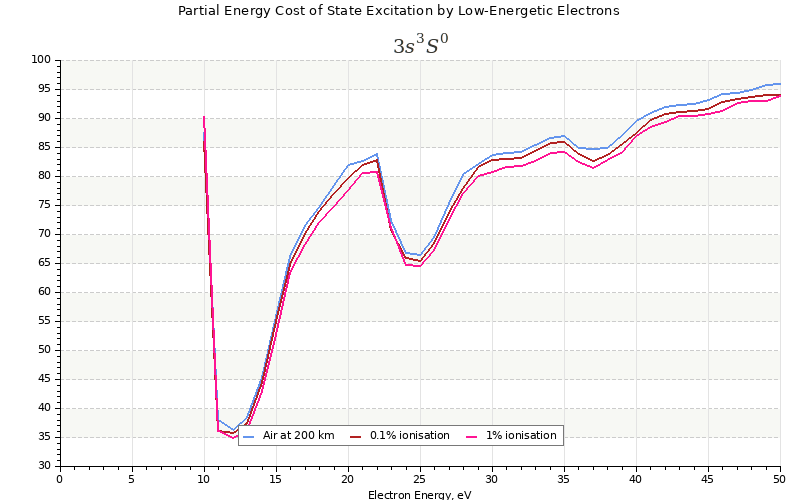

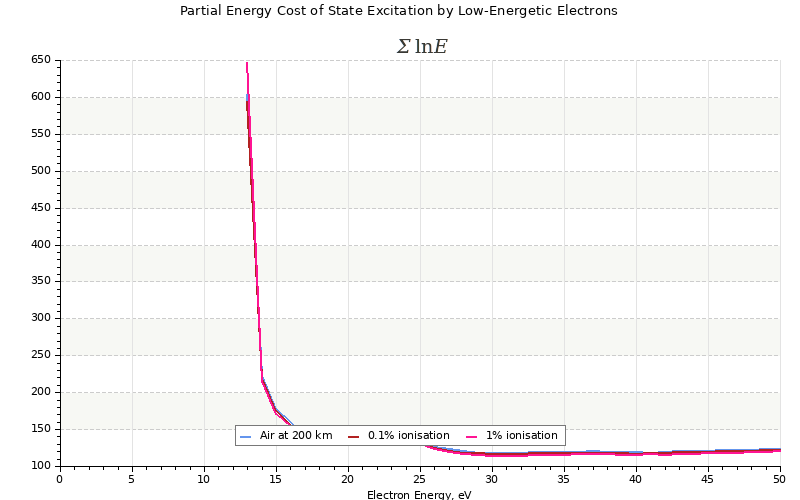

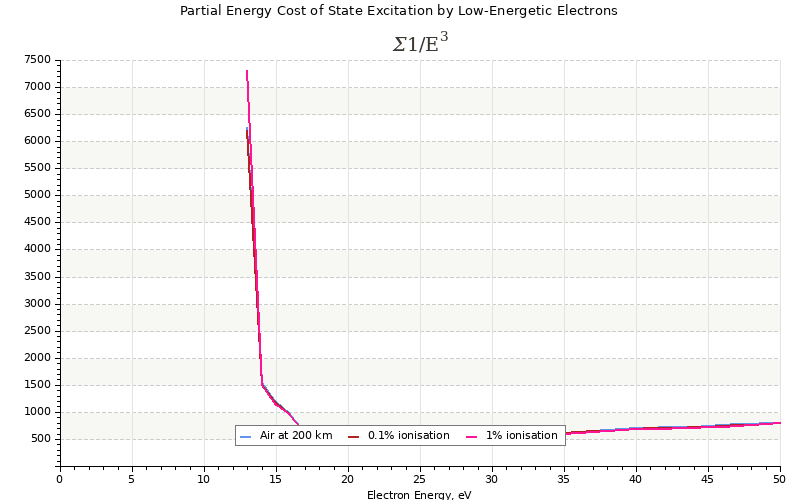

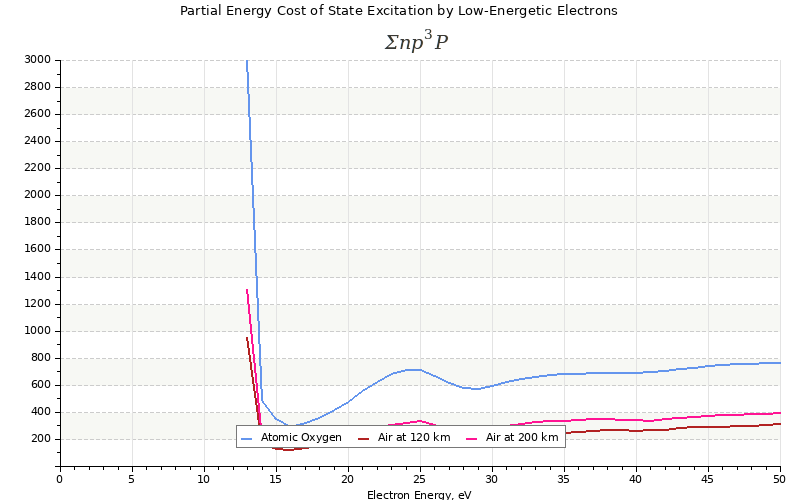

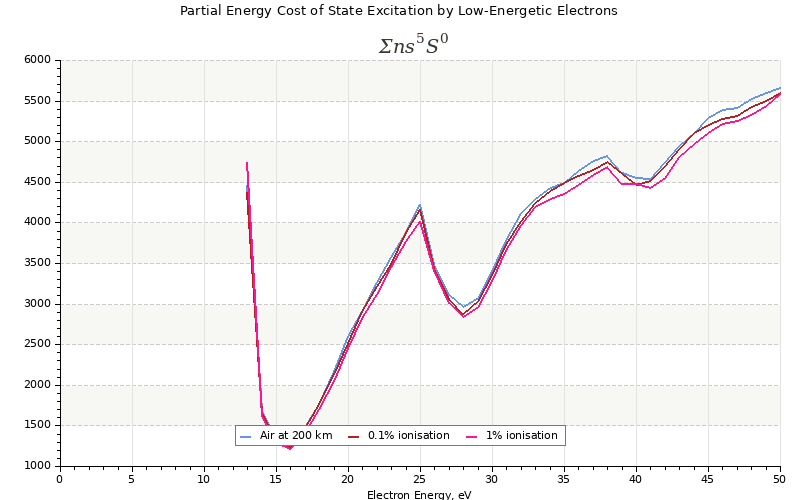

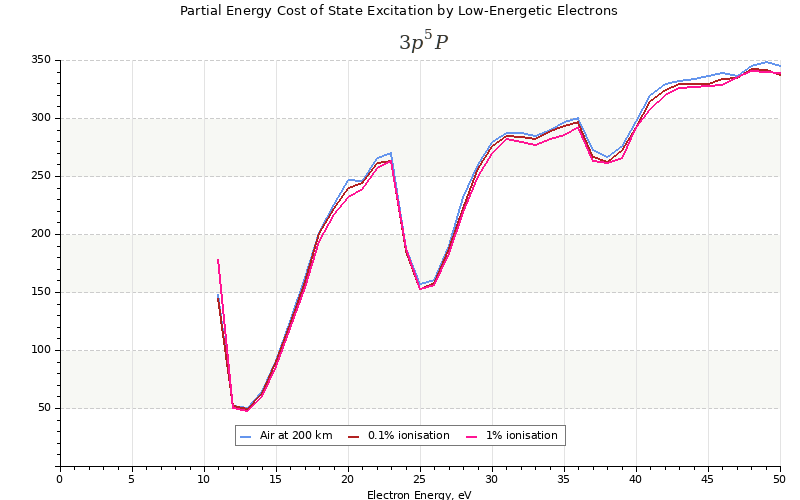

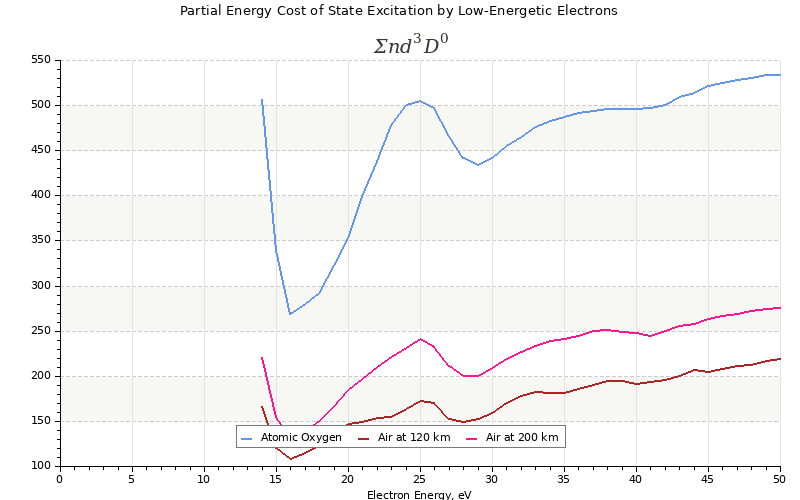

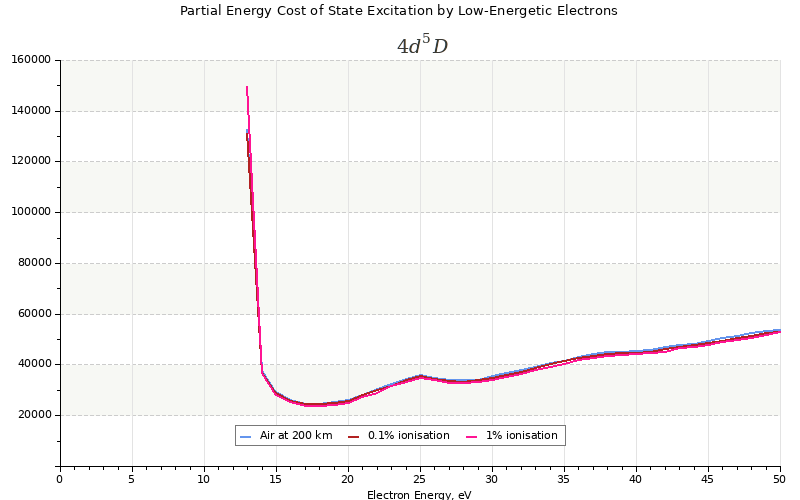

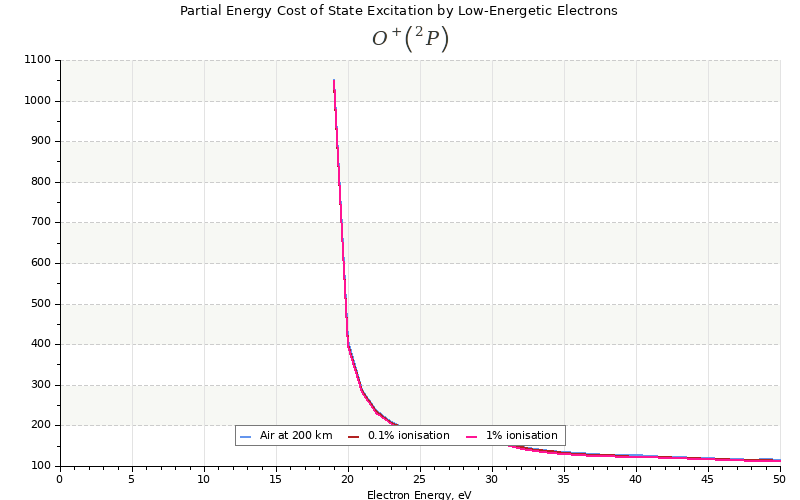

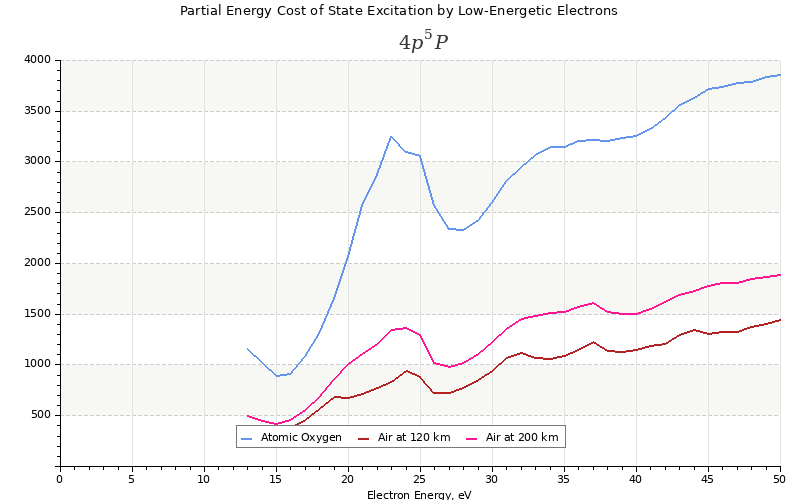

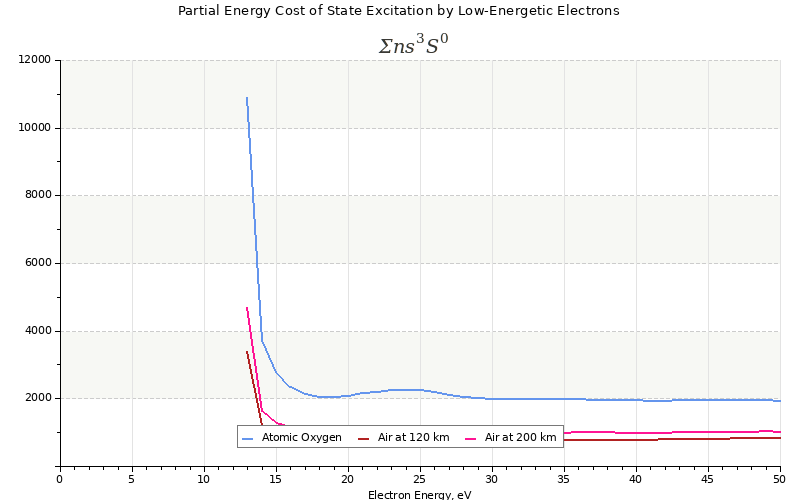

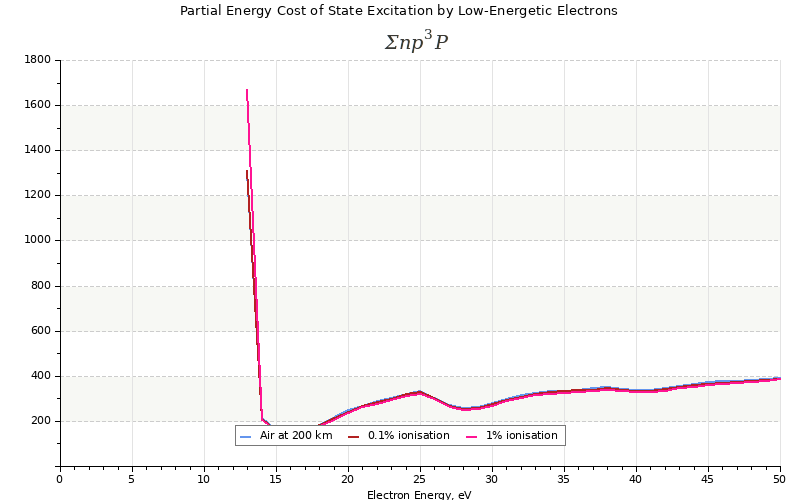

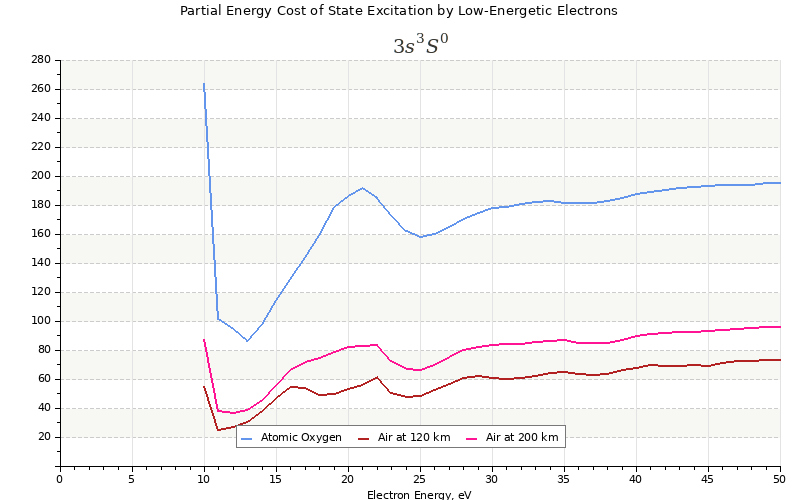

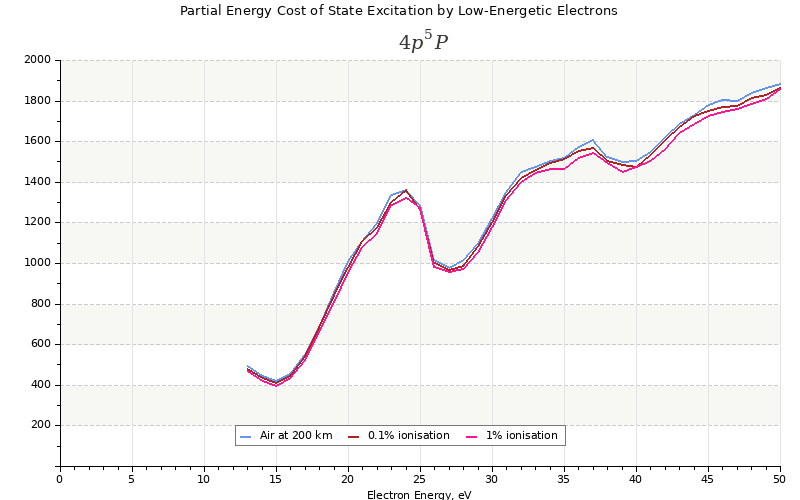

#	Threshold, eV	E_o=100eV	E_o=1keV	E_o=10keV	Plot for E_o<50eV	With e-e collisions
1	11.05	295.5	393	416.5	View plot	View plot
2	12.36	1438	1970	2111	View plot	View plot
3	12.87	1360	1889	2035	View plot	View plot
4	13.99	512.8	751.5	826.2	View plot	View plot

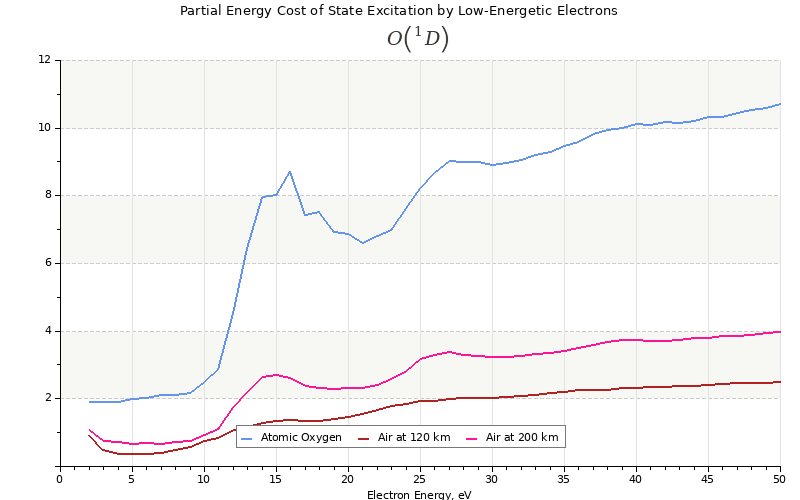

5	1.9	4.952	5.645	5.672	View plot	View plot

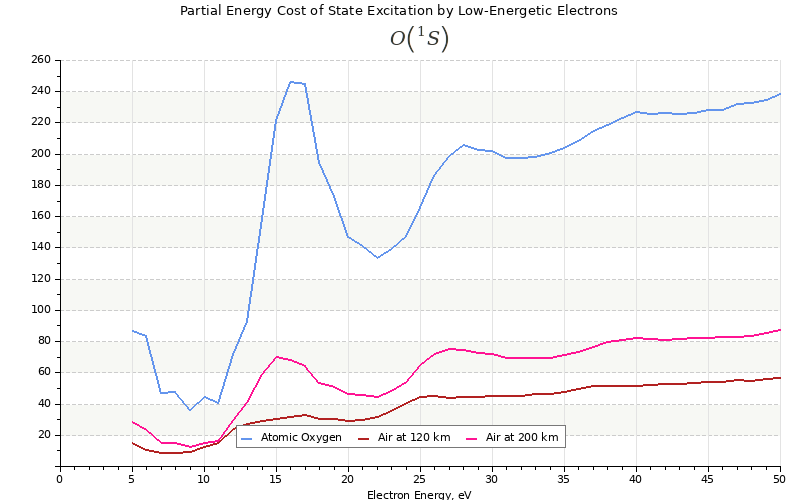

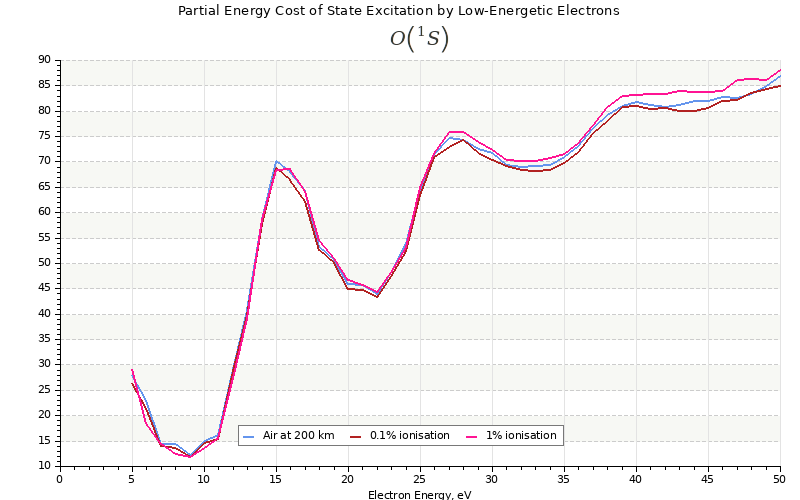

6	4.17	244.9	283.9	282.9	View plot	View plot
7	9.21	1545	1880	1877	View plot	View plot
8	11.81	17430	21760	22250	View plot	View plot
9	12.64	24220	31150	31910	View plot	View plot
10	10.76	1745	2175	2220	View plot	View plot
11	12.26	8328	10670	10930	View plot	View plot
12	12.83	8704	11420	11730	View plot	View plot
13	12.08	80120	110500	113600	View plot	View plot
14	12.75	214300	303000	312000	View plot	View plot
15	13.05	153200	220800	227600	View plot	View plot
16	12.79	3089	4601	4754	View plot	View plot
17	9.53	322.6	387.3	409.6	View plot	View plot
18	11.91	2189	2536	2703	View plot	View plot
19	12.68	2669	3042	3255	View plot	View plot
20	12.08	1021	1288	1376	View plot	View plot
21	12.75	1272	1625	1731	View plot	View plot
22	13.05	865.4	1101	1174	View plot	View plot
23	12.65	325.3	376.1	396.1	View plot	View plot

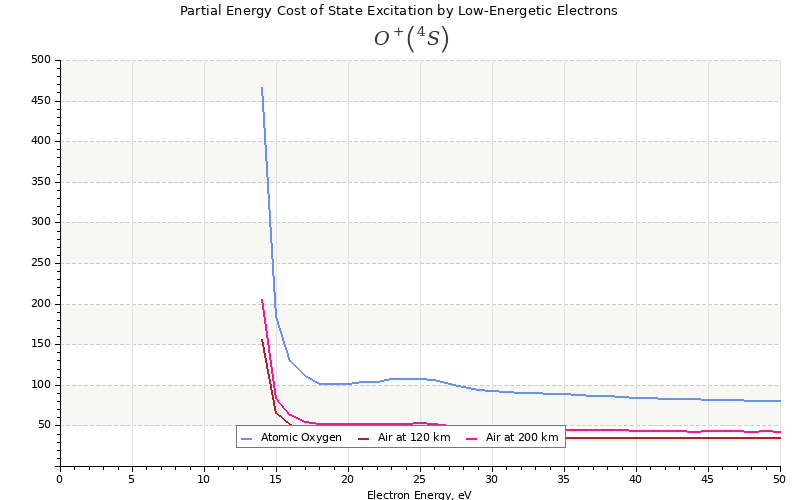

24	13.6	94.21	82.39	82.38	View plot	View plot

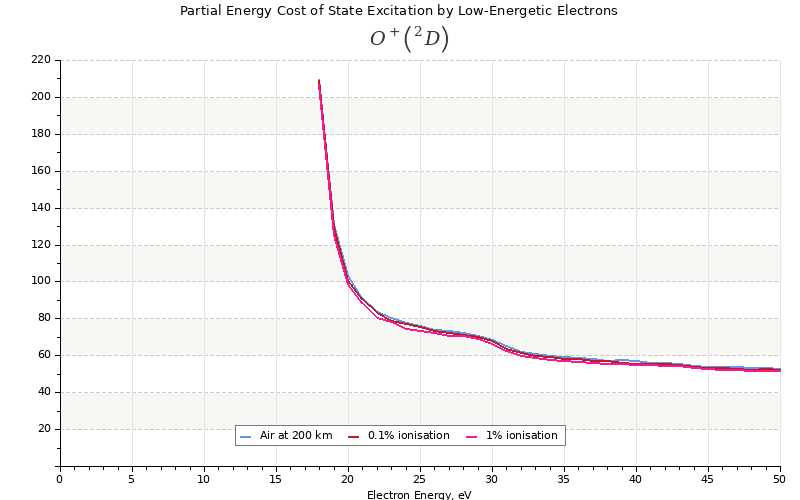

25	16.9	105.9	88.73	88.54	View plot	View plot
26	18.5	221.1	181.9	181.4	View plot	View plot
